| Weight | 0.1 kg |
|---|---|
| Dimensions | 4 × 4 × 7 cm |
| Amp | 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A, 6A |
Mini Circuit Breaker

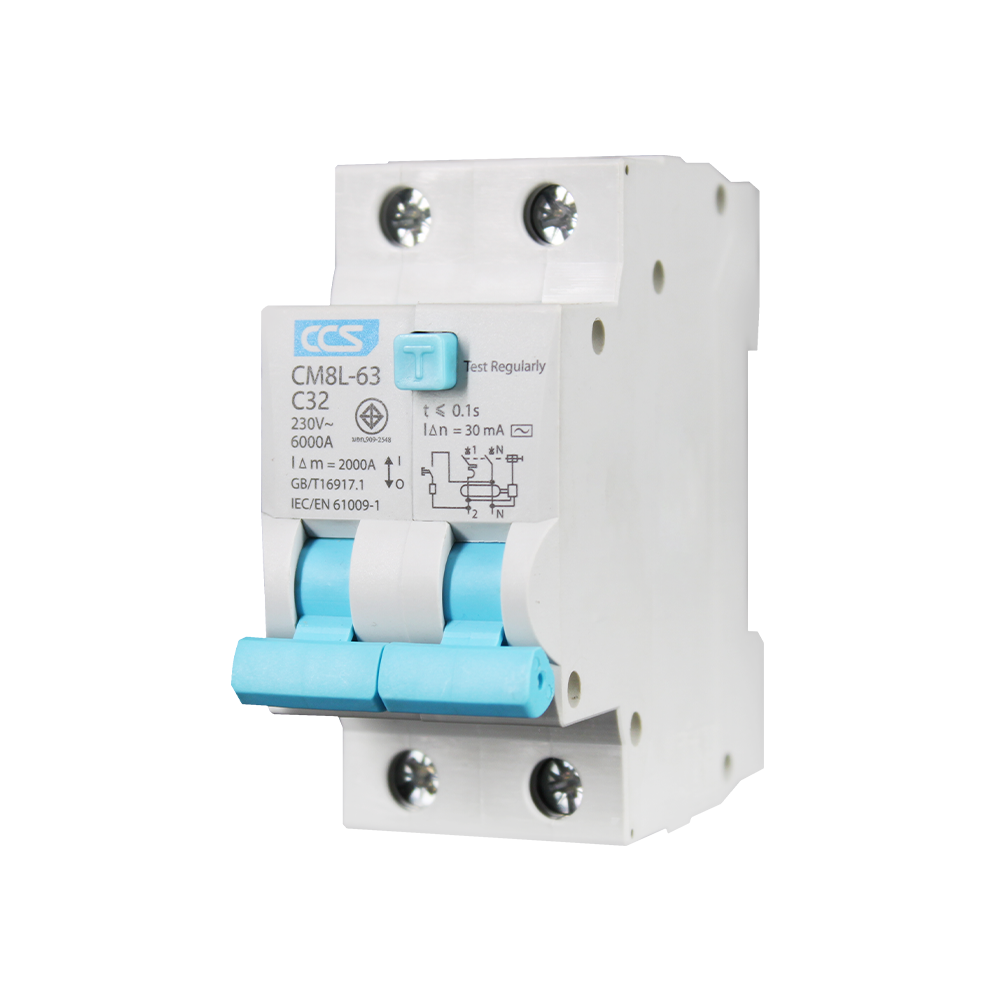

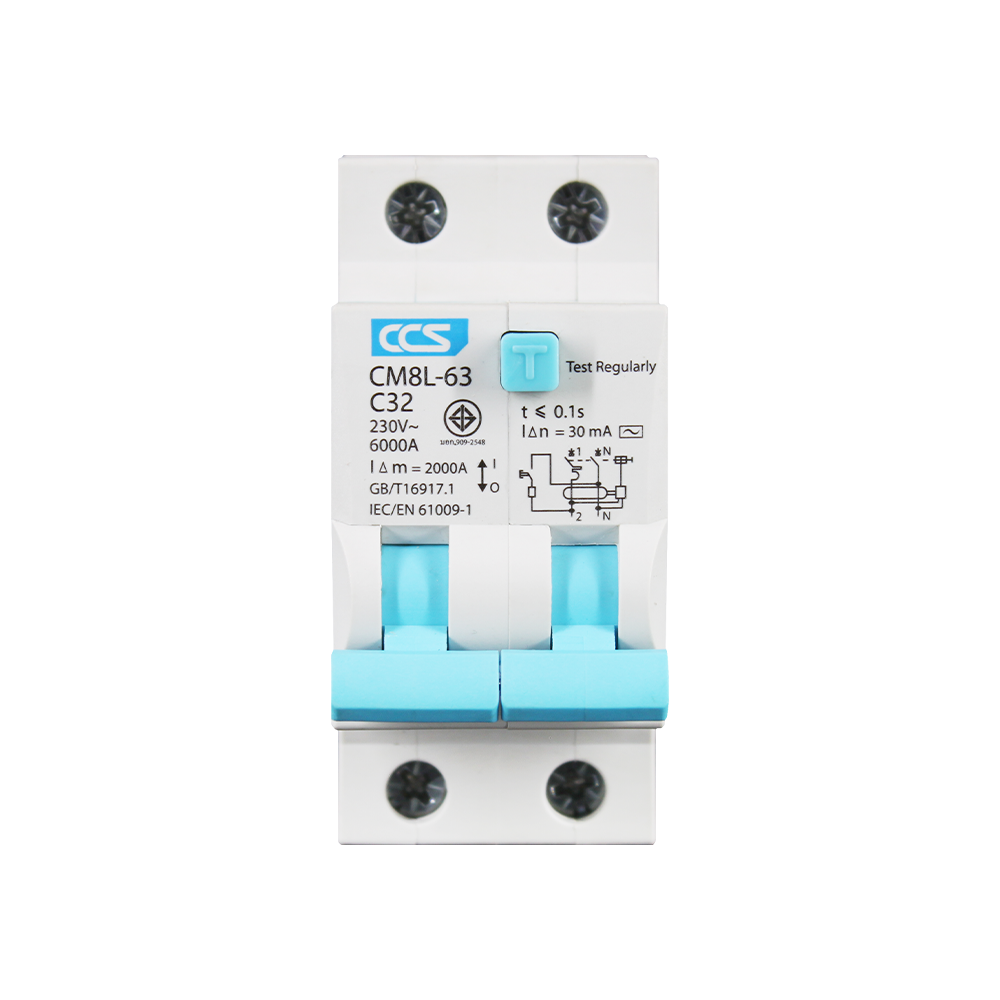

Mini Circuit Breaker CM8L-63 2P (RCBO)
Original price was: ฿701.00.฿454.00Current price is: ฿454.00.
Technical Specifications | รายละเอียดสินค้า
- Rated Current In (A) : 10A / 16A / 20A / 32A / 40A / 50A / 63A
- Rated Voltage Un (VAC) : 230V
- Rated Frequency (Hz) : 50/60 Hz
- Rated Residual Current IΔn (mA) : 30 mA
- Rated Residual Breaking Capacity IΔm (A) : 2000A
- Interrupting Capacity (kA) : 6 kA
- Tripping Time : t≤0.1 s
- Number of Poles : 2P
- Standards : IEC/EN 61009-1 / TISI.909-2548
- Warranty : 5 Years
