| Weight | 0.1 kg |
|---|---|
| Dimensions | 4 × 4 × 7 cm |
| Amp | 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A, 6A |
Mini Circuit Breaker

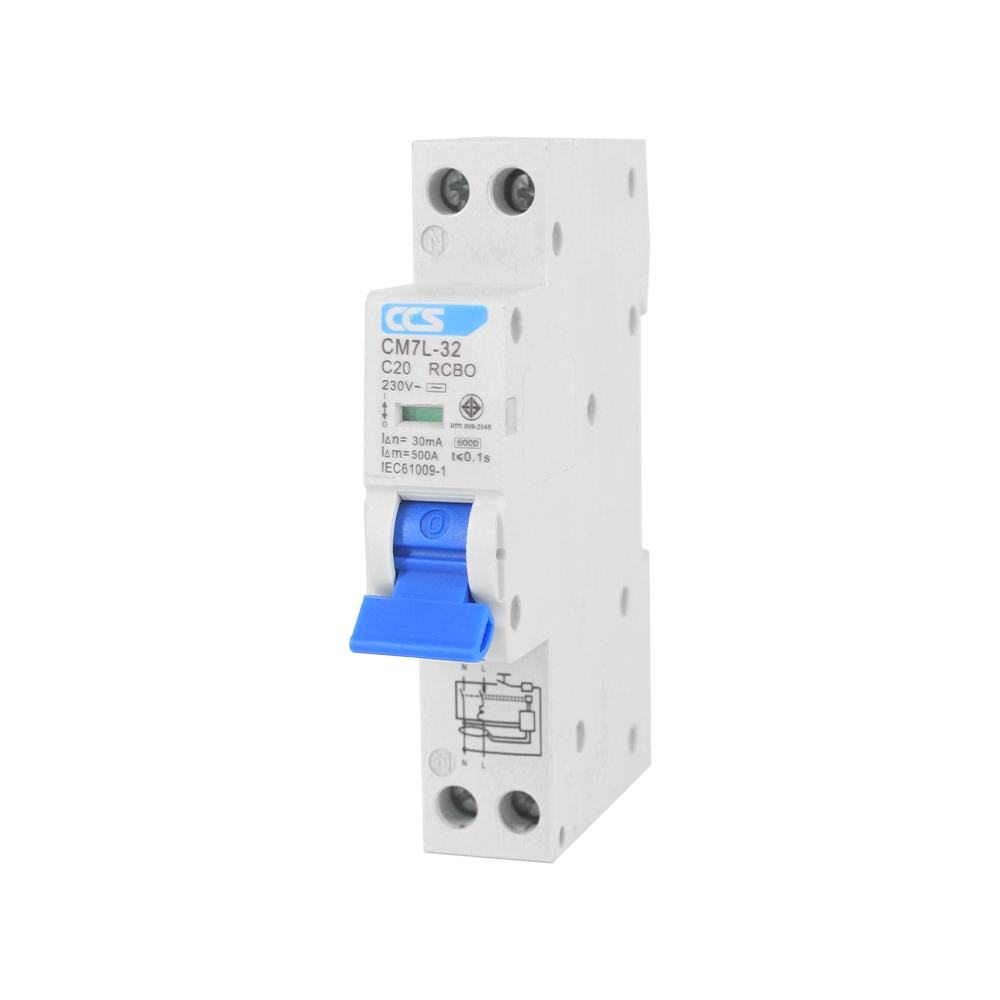

Mini Circuit Breaker CM7L-32 1P (RCBO)
Original price was: ฿990.00.฿641.00Current price is: ฿641.00.
Technical Specifications | รายละเอียดสินค้า
- Rated Current In (A) : 10A / 16A / 20A / 32A
- Rated Voltage Un (VAC) : 230V
- Rated Frequency (Hz) : 50/60 Hz
- Rated Residual Current IΔn (mA) : 30 mA
- Rated Residual Breaking Capacity IΔm (A) : 500A
- Interrupting Capacity (kA) : 6 kA
- Tripping Time : t≤0.1 s
- Number of Poles : 1P
- Standards : IEC/EN 61009-1
- Warranty : 5 Years
